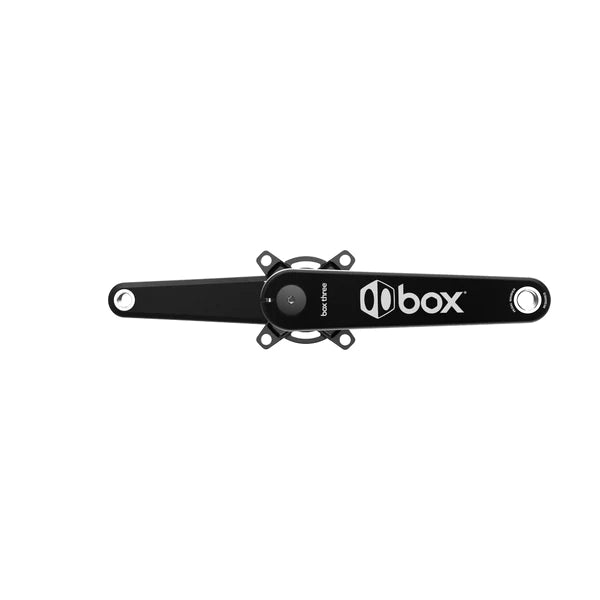

BOX Three Hollow-Forged Crankset

BOX Three Hollow-Forged Crankset

Regular price $449.00 AUD
Regular price $449.00 AUD Sale price $449.00 AUD
Sale Sold out
Tax included.
Size

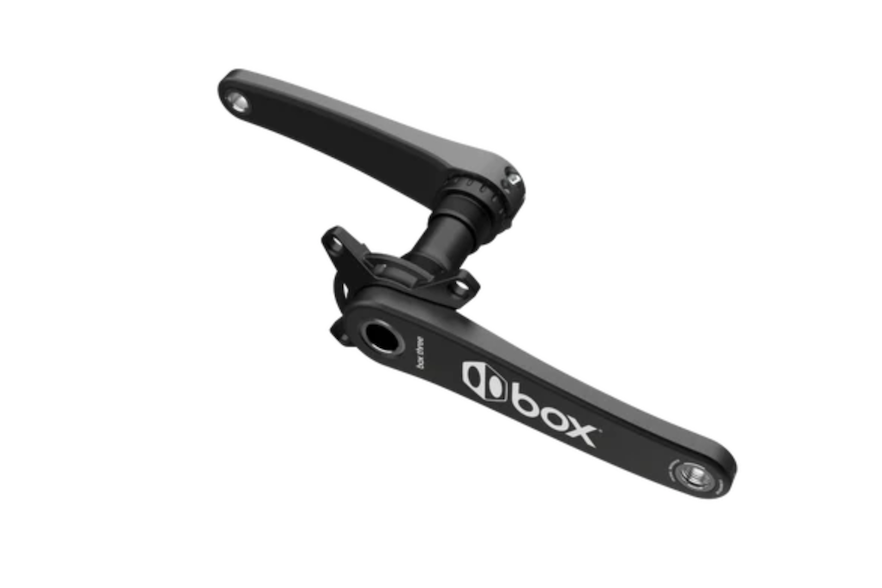

The Box Three Crankset features a hollow-forged 2-piece design with an oversized bottom bracket interface. The 24mm spindle is pressed into the drive-side crank arm for durability and easy installation. The non-drive side crank arm features a 2-bolt pinch system for added strength. Our unique 4-bolt 104 BCD spider features a flex-resistant ring for optimum performance.


Box Three Cranks feature steel pedal inserts that require pedal washers and externally sealed bearing BSA bottom brackets, both provided in the box.

    For compatibility questions, please click here

    Weight Limit: 115kg (253 lbs) with limitations as per Category 2 of EN 16054:2012 Standard

    Oversized Hollow Forged Design
    Dual pinch bolts for even clamping force
    4-bolt 104 BCD Spider with Flex-Resistant Ring
    24mm chromoly spindle
    External BSA BB Included

    170mm 175mm 177.5mm 180mm
    BB (Included): BSA 1.37
    Spindle: 24mm Chromoly
    Material: 6061-T6 Aluminum
    Process: Hollow-Forged
    Chainline: 44.5mm
    Torque specs: 12-14 nM
    Weight: 1,010g/35.6oz, 1,020g/35.9oz, 1,020g/35.9oz, 1,010g/35.6oz
